Doepfer A-179-2 Light-to-CV-Controller


Module A-179-2 can be used to convert different illumination intensities into corresponding analog voltages and a gate signal derived from the analog voltage. It's the successor of the obsolete module A-179.

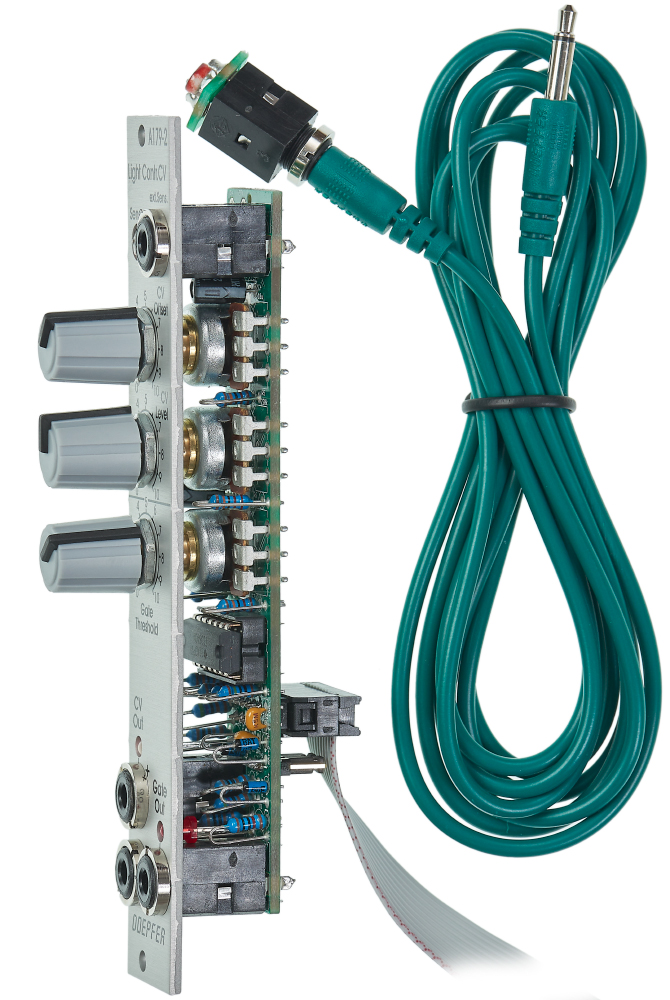

A light sensitive resistor (LDR) converts the illumination of the internal light sensor into a corresponding analog control voltage. The internal sensor is located at the front panel. Instead of the internal sensor a remote sensor can be connected via a standard patch cable to the module (ext.Sens. socket). An external sensor with a 2 m patch cable (A-100C200) is included. The external sensor is mounted on a small pc board which is equipped also with a 3.5 mm jack socket. The nut of the socket can also be used to mount the external sensor.

The module A-179 is similar to the Theremin module A-178 but uses the illumination intensity instead of the distance between hand and antenna for generating the analog voltage.
One can choose between passive control by covering/shading the sensor via hand or body, or active control by using e.g. a pocket lamp or flashlight. For this two versions of output voltages are available (CV Out + und CV Out -).

The module has these controls and in/outputs available:

  • ext. Sens.: by means of a standard patch cable the external sensor can be connected to this socket. In this case the internal sensor is turned off.
  • CV Offset: control to adjust the output voltage which is assigned to a certain illumination (e.g. 0V for complete darkness)
  • CV Level: control that is used to adjust the sensitivity of the generated output voltage (i.e. how much a certain difference in brightness affects the output voltage)
  • Gate Threshold: control that is used to adjust the threshold for the generation of the gate signal, an internal jumper is used to define if the gate signal is derived from the CV Out+ or CV Out- voltage.
  • CV Out+: positive control voltage output, increasing brightness causes the increase of the voltage at this output
  • CV Out+: negative control voltage output, increasing brightness causes the decrease of the voltage at this output
  • LED CV Out: bipolar LED (red/yellow) as display for the CV outputs
  • Gate: gate output with LED display

Applications:

  • controlling any voltage controlled parameter e.g. pitch or pulsewidth of a VCO, filter frequency or resonance of a VCF, loudness of a VCA, time of an envelope generator, frequency of a VCLFO
  • triggering activities via gate with adjustable threshold, e.g. starting an envelope, starting/stopping a sequencer or any switching function (e.g. with  A-150-1 or 151).
  • Conversion into MIDI control change messages is possible with the A-192-2.
